At DFE LAB we create cost-efficient well-monitoring systems that integrate with your existing system; or use our easy-to-use cloud monitoring software, accessible from anywhere.

Upgrade your assets with DFE LAB’s tailored solutions and save money on unfocused labor and downtime with the power of live analytics.

down arrow

Introducing the R3CON Unit

The R3CON unit is the most cost-effective asset monitoring system on the market.

We have worked for 5+ years with companies such as British Petroleum & IKAV Energy Inc. creating an asset monitoring system. Our focus was to develop a cost-effective solution which was serviceable, configurable and could be rapidly deployed. It also needed to be adaptable to many different locations’ needs.

R3CON deployment is MINUTES and can be installed by a novice or seasoned staff.

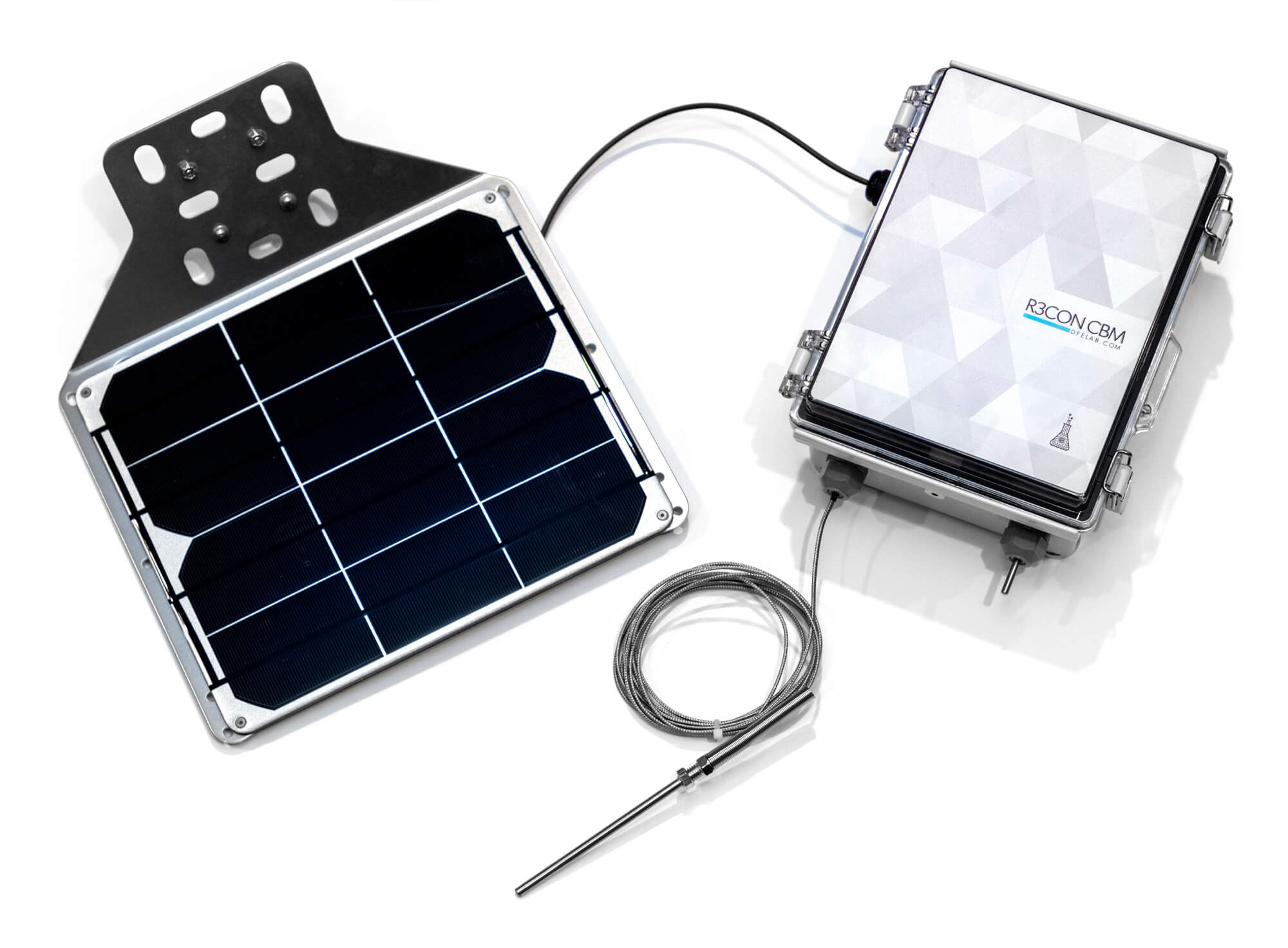

r3con box photo
What makes the R3CON unit so impressive?
simplicity

box configuration layout
The unit has the option of using all sensors or select ones, please specify when quoting.

R3CON units are designed for passive monitoring purposes and are not intended for deployment in critical safety scenarios.

Below is our most common configuration used.


common configuration
background quote image

These units are very complex but have a simple, user-friendly design, making them perfect for installation and use. The functions they have work directly with our needs and excel in our expectations.

Cameron Woods
I&E Technician / Maintenance
IKAV ENERGY
screenshot of software

Intuitive Software Package

With over three decades of software development, we have created an intuitive software package. Users can create new configurations, add locations, and build alerting situations targeting specific sensors with ease.

In minutes you can create your first device configuration, import locations, and set up alert thresholds.

Our team of seasoned experts is here to ensure your team has the tools to identify issues as soon as they arise.

AI Policy

no ai loggingAlthough AI has been promoted in recent industry marketing materials. DFE LAB has deemed it a possible threat for AI to track, log, or have the locations of our client’s assets.

At no point in our company’s past/future will we use AI to integrate with your data.

Instead, we will be using our custom software to output current values and base alert triggers on that data. We also allow the data to directly flow to your system, such as Wonderware, via data exports at which point your team can create alerting situations.

R3CON Installation

1. Secure the magnetized enclosure to your desired location.

2. Position the magnetized solar panel on the southmost side of the enclosure.

3. Run the thermocouples to the desired locations.

4. Plumb the gas line to the pressure sensor, ensure you’re using a spanner to hold the inside of the pressure sensor while you tighten it.

5. Use the mobile-friendly app to connect the unit by selecting your desired location and scanning the QR code.

6. Turn the unit on with the toggle switch inside.

The unit is now successfully connected to the network and linked to your system, gathering data in 15-minute increments.

image of installed unit
communications partner

Data Management Partner

Our engineers have developed a low-cost service to send data to and from the units. This eliminates any radio noise or load to the clients’ critical safety networks.

All R3CON units are equipped with LTE and LoRaWan network access, to ensure the best communication possible with a low entry cost for the client.

Base Unit Specifications

Feel free to contact our team if you’re interested in tailoring units to meet your unique requirements.

PCBA Details

- High quality 2 layer construction
- 3 Onboard Ignion antennas
- Ability to use external antennas
- Low power design
- SD card reader for logging and configuration
- 4 Thermocouple inputs
- 0-10v/4-20mA Sensor input (pressure sensor)

Enclosure

- UL & cUL Listed (File E194432)
- NEMA 1 & 4X rated
- Meets IP65 & IP66 specifications based on NEMA/UL Type rating conversion IP67 rated
- Fiberglass reinforced polycarbonate
- Polycarbonate cover

Power

- Custom 11w solar panel with SunPower cells
- 10,000mAh cold weather battery pack
- Onboard solar management
- 18v out for pressure sensor readings

Communication

- SimCom 7080 global cell module
- 5G, 4G (LTE), 3G, 2G, NB-IoT, LTE-M
- Connectivity to over 400 global networks
- LoRa Network Enabled

Sensors

- Pressure, 0-200PSI or 0-2,000PSI Options
- Thermal, K-Type Thermocouples

We have confidence in our products and won’t resort to pushy sales tactics.

We provide complimentary quotes and consultations to explore crafting a bespoke solution.
